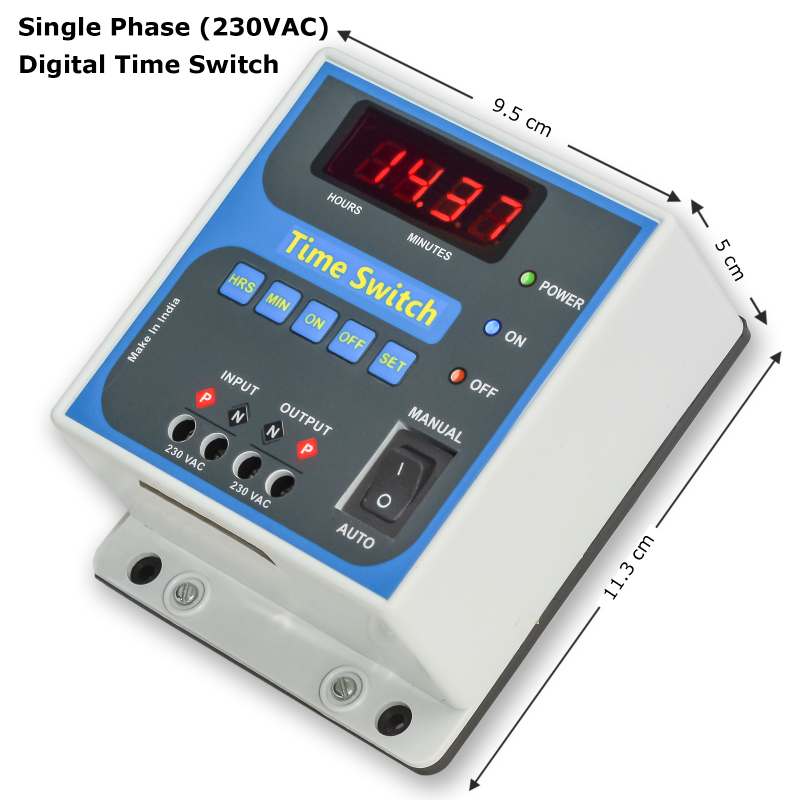

INPUT SPECIFICATION: Input NPN/PNP Proximity, Limit Switch, Micro Switch (Configurable) Time Range Sec (9.99/99.9/999) Min (9.59/99.9/999) Hour (9.59/99.9/999) DISPLAY AND KEYS Display Upper: 3-Digit, 7-Segment, 0.39” Keys HRS MIN ON OFF SET DIMENSION Size (cm) 5 (H) x 9.5 (W) x 11.3(D) Panel Cutout (cm) 9.5 (H) x 9.5 (W) GENERAL SPECIFICATION: Operating Mode Cyclic On Timer Cyclic Off Timer Delay On Timer Delay Off Timer Counting Direction Up/ Down Reset Option Front Panel Reset OUTPUT SPECIFICATION: Relay Output Relay 1 nos. Relay Type 2-C/O Rating 25A, 230V AC AUXILIARY SUPPLY: Supply voltage 170 to 270V AC, 50-60Hz Power consumption (VA RATING) Approx 4 VA @ 230V AC MAX ENVIRONMENT CONDITION: Operating Temp. 0°C to 55°C Relative Humidity Upto 95% RH
(non-condensing)Protection Level (AS Per Request) IP-65 (Front side) As per IS/IEC 60529 : 2001
